3.2 mm / 0.12´´ (standard brush table)
6.4 mm / 0.25´´ (high density brush table) — OPTIONAL
AC-2510NT Travel Range
1270 mm x 2500 mm / 50´´ x 98.4´´
AC-255NT Travel Range
1270 mm x 1270 mm / 50´´ x 50´´
Max. feed rate
X axis: 80 m per min. / 3,150´´ per min.
Y axis: 60 m per min. / 2, 362´´ per min.
Max. weight of material
50 kg / 110 lbs. (F1 speed) •
150 kg / 331 lbs. (F4 speed)
AC-2510NT Max. hit rate
X Axis 350 HPM • Y Axis 280 HPM (on 1´´ pitch at 0.118´´ stroke)
900 HPM (at 0.019´´ pitch and 0.055´´ stroke) for marking pattern
AC-255NT Max. hit rate
X Axis 370 HPM • Y Axis 275 HPM (on 1´´ pitch at 0.118´´ stroke)
900 HPM (at 0.019´´ pitch and 0.055´´ stroke) for marking pattern
Punching accuracy
± .1 mm / 0.004´´ and ± .07 mm / 0.002´´ (Fine Accuracy mode)
Turret rotation speed
30 rpm
Auto-Index rotation speed
60 rpm
NC control
AMNC/PC
Power requirement
19kVA
Max. air consumption
750 NI/min. / 2.7 cubic feet
AC-2510NT Machine mass
13 metric tons / 28,660 lbs.
AC-255NT Machine mass
12 metric tons / 26,400 lbs.
Amada’s new AC-NT series machines give fabricators the opportunity to affordably take advantage of the many newer processing capabilities available in punching — along with the additional benefits of a machine that is both environmentally-friendly and costs significantly less to operate and maintain than some older technologies.

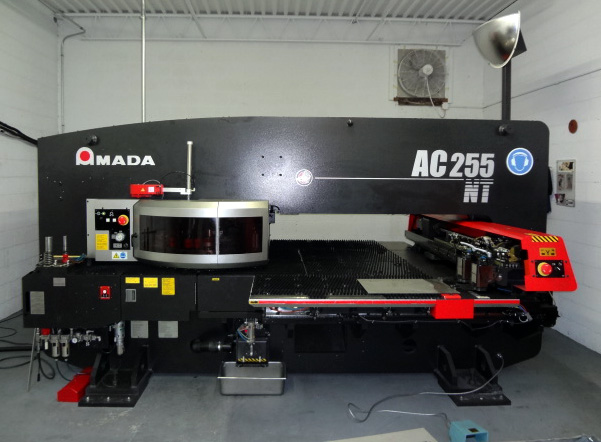

AC255NT Series Standard Features
The AC-NT series utilizes an AC servo motor to drive the ram (eliminating the hydraulic power supply and chiller
Electrical consumption is less than one-half of comparable hydraulic machines
Higher positioning speed improves productivity
Space-saving design takes the cost of valuable floor space
The AC-NT offers significantly faster punching speeds than mechanical turrets
Brush table design provides scratch-free processing, eliminating secondary finishing, and also minimizes noise during positioning
PC-based network CNC Control
Connectivity with your entire shop through the machine’s NT-based controller, instantly access part programs, multi-media help files and production schedules
Power vacuum slug pull system (patent pending) virtually eliminates slug pull concerns
Available with 45 or 51 station, 4 auto-index turrets (58 station, 2 auto-index special order)
